Parallel Lines Cut by a Transversal Worksheet, Examples, and Notes

Get the free Parallel Lines cut by a Transversal worksheet and other resources for teaching & understanding Parallel Lines cut by a Transversal

How to Solve Parallel Lines cut by a Transversal | Mathcation

Key Points about Parallel Lines Cut by a Transversal

  • Understanding the different types of angles formed by parallel lines cut by a transversal is crucial for solving geometric problems.
  • The properties of corresponding angles, alternate interior angles, alternate exterior angles, consecutive interior angles, and vertical angles are essential for solving parallel lines cut by a transversal problems.
  • Parallel lines cut by a transversal has real-life applications in fields such as architecture and engineering.

Two Parallel Lines cut by a Transversal Introduction

Parallel Lines cut by a Transversal are formed when two parallel lines are intersected diagonally by an additional line. This additional line is called a transversal. When two Angles in Parallel Lines happen, there are four types of congruent angles that are formed and can be used to solve for missing angles.

The first type of congruent angle formed by Angles in Parallel Lines are Vertical Angles. Vertical Angles are angles that are located diagonally across from each other. The second type of congruent angles are Corresponding Angles. Corresponding angles are located in the same location but on each different parallel line. The third type of congruent angles are Alternate Exterior Angles, which are angles that are on the exterior of the figure and also on the opposite side of the transversal. The last type of congruent angle formed by Parallel Lines and Transversals are Alternate Interior Angles, which are angles that are on the interior of the figure and also on the opposite side of the transversal.

Parallel lines cut by a transversal is a fundamental concept in geometry that is essential for solving various problems. When two parallel lines are crossed by a third line (transversal), several angles are formed. These angles have unique properties that can be used to solve geometric problems. Understanding this concept is crucial for students who want to excel in geometry.

To solve parallel lines cut by a transversal problems, one needs to understand the different types of angles formed. There are corresponding angles, alternate interior angles, alternate exterior angles, consecutive interior angles, and vertical angles. Each of these angles has unique properties that can be used to solve problems. For example, corresponding angles are congruent, and alternate interior angles are congruent. Students need to understand the properties of these angles to solve problems efficiently.

Parallel lines cut by a transversal is a concept that has real-life applications. For example, architects use this concept when designing buildings and bridges. They use this concept to ensure that the structures are stable and can withstand different forces. Engineers also use this concept when designing machines and engines. Understanding this concept is essential for students who want to pursue careers in science, technology, engineering, and mathematics (STEM) fields.

Common Core Standard: 8.G.5
Related Topics: Pythagorean Theorem, Triangle Angle Sum, Exterior Angle of a Triangle, Volume of a Cylinder, Volume of a Cone, Volume of a Sphere
Return To: Home, 8th Grade

Parallel Lines cut by a Transversal

How to Solve Parallel Lines Cut by a Transversal

When two parallel lines are cut by a transversal, various angle relationships are formed. In geometry, these angle relationships play an essential role in solving problems related to parallel lines and transversals. Here are some steps to follow when solving problems related to parallel lines cut by a transversal.

Step 1: Identify the Angle Relationships

The first step is to identify the angle relationships formed when a transversal intersects two parallel lines. These angle relationships include corresponding angles, alternate interior angles, alternate exterior angles, and consecutive interior angles.

Step 2: Use Supplementary Angles

When two angles add up to 180 degrees, they are said to be supplementary angles. When solving problems related to parallel lines cut by a transversal, it is important to use this property. For example, if two angles are supplementary, and one of the angles measures 110 degrees, then the other angle measures 70 degrees.

Step 3: Use the Slope of the Lines

The slope of parallel lines is the same, while the slope of perpendicular lines is negative reciprocals. When solving problems related to parallel lines cut by a transversal, it is important to use the slope of the lines to solve for missing angles or lengths.

Step 4: Use Angle Relationships to Solve for Missing Angles

Once the angle relationships are identified, and the supplementary angles are used, it is time to solve for missing angles. By using the angle relationships, it is possible to solve for missing angles. For example, if two angles are corresponding angles, then they are congruent.

Step 5: Practice, Practice, Practice

The more practice one gets in solving problems related to parallel lines cut by a transversal, the easier it becomes. It is essential to practice using different types of problems to become proficient in solving them.

In conclusion, solving problems related to parallel lines cut by a transversal requires identifying the angle relationships, using supplementary angles, using the slope of the lines, and using angle relationships to solve for missing angles. With practice, anyone can become proficient in solving these types of problems.



Angles Formed by Parallel Lines Cut by a Transversal

When two parallel lines are intersected by a transversal, a number of angles are formed. Understanding these angles is important in geometry as it helps in solving problems related to parallel lines. This section will cover the different types of angles formed by parallel lines cut by a transversal.

Corresponding Angles

Corresponding angles are angles that are in the same relative position when two parallel lines are intersected by a transversal. For example, if line AB and line CD are parallel, and a transversal intersects them at point E, then angles A and C are corresponding angles, as are angles B and D. Corresponding angles are congruent when the lines are parallel.

Interior Angles

Interior angles are the angles that are formed on the inside of the two parallel lines when they are intersected by a transversal. Interior angles can be further divided into two types: same-side interior angles and consecutive interior angles.

Same-Side Interior Angles

Same-side interior angles are two angles that are on the same side of the transversal and between the two parallel lines. They are supplementary, which means that their sum is equal to 180 degrees.

Consecutive Interior Angles

Consecutive interior angles are two angles that are on the same side of the transversal and inside the two parallel lines. They are also supplementary.

Exterior Angles

Exterior angles are the angles that are formed on the outside of the two parallel lines when they are intersected by a transversal. Exterior angles can be further divided into two types: alternate exterior angles and corresponding exterior angles.

Alternate Exterior Angles

Alternate exterior angles are two angles that are on opposite sides of the transversal and outside the two parallel lines. They are congruent when the lines are parallel.

Angle Pairs

Angle pairs are two angles that are formed when two parallel lines are intersected by a transversal. There are several types of angle pairs, including vertical angles, linear pairs, and supplementary angles.

Vertical Angles

Vertical angles are two angles that are opposite each other and formed by the intersection of two lines. Vertical angles are always congruent.

Linear Pairs

Linear pairs are two adjacent angles whose non-common sides are opposite rays. Linear pairs are always supplementary.

Consecutive Interior Angles

Consecutive interior angles are two angles that are on the same side of the transversal and inside the two parallel lines. They are also supplementary.

In conclusion, understanding the different types of angles formed by parallel lines cut by a transversal is crucial in solving geometry problems. By knowing the properties of these angles, one can easily solve problems related to parallel lines.

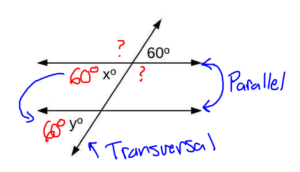

Parallel Lines cut by a Transversal Solution

Real Life Examples of Parallel Lines Cut by a Transversal

Parallel lines cut by a transversal are not just a theoretical concept, but they are also present in our daily lives.

  1. Parallel Lines are two lines that will never cross.
  2. A transversal is a line that intersect the parallel lines.
  3. Vertical angles are diagonally across from each other and are congruent.
  4. Corresponding angle occur in the spot for both intersection points of the transversal and parallel lines.

Here are some real-life examples of parallel lines cut by a transversal:

Railway Tracks

Railway tracks are a perfect example of parallel lines cut by a transversal. The tracks are parallel to each other, and they are intersected by transverse beams that hold them in place. The beams are perpendicular to the tracks and form right angles with them. The crossing of the transverse beams and the tracks creates a series of angles that follow the properties of parallel lines cut by a transversal.

Windows and Doors

Windows and doors are another example of parallel lines cut by a transversal. The frames of the windows and doors are parallel to each other, and they are intersected by the transverse beam that holds them in place. The beam is perpendicular to the frames and forms right angles with them. The crossing of the transverse beam and the frames creates a series of angles that follow the properties of parallel lines cut by a transversal.

Crosswalks

Crosswalks on the road are also an example of parallel lines cut by a transversal. The white stripes on the road are parallel to each other, and they are intersected by the transverse lines that indicate the start and end of the crossing. The transverse lines are perpendicular to the stripes and form right angles with them. The crossing of the transverse lines and the stripes creates a series of angles that follow the properties of parallel lines cut by a transversal.

Fences

Fences are another example of parallel lines cut by a transversal. The rails of the fence are parallel to each other, and they are intersected by the transverse beams that hold them in place. The beams are perpendicular to the rails and form right angles with them. The crossing of the transverse beams and the rails creates a series of angles that follow the properties of parallel lines cut by a transversal.

In conclusion, parallel lines cut by a transversal are not just a theoretical concept, but they are present in our daily lives. Railway tracks, windows and doors, zebra crossings, and fences are just a few examples of how parallel lines cut by a transversal are used in the real world.



5 Quick Parallel Lines Cut by a Transversal Practice Problem

/5

Parallel Lines Quiz

Click Start to begin the practice quiz!

1 / 5

Find the value of x.

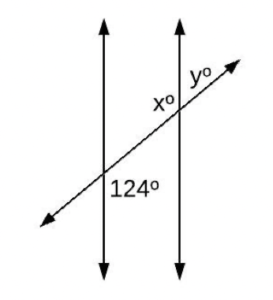

Screen Shot 2023 01 24 at 3.15.00 PM

2 / 5

Find the value of x.

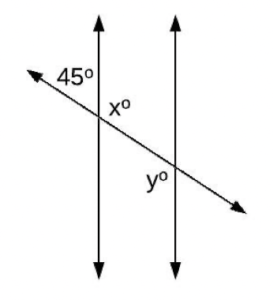

Screen Shot 2023 01 24 at 3.14.38 PM

3 / 5

Find the value of x.

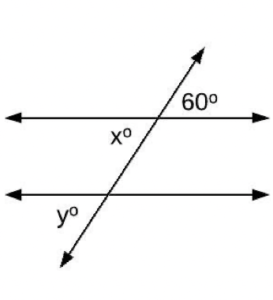

Screen Shot 2023 01 24 at 3.14.46 PM

4 / 5

Find the value of x.

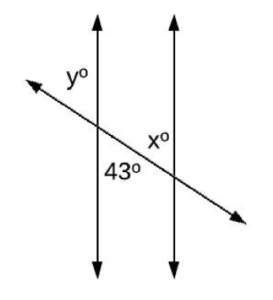

Screen Shot 2023 01 24 at 3.15.08 PM

5 / 5

Find the value of x.

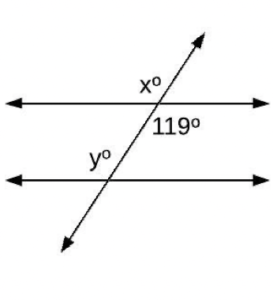

Screen Shot 2023 01 24 at 3.14.53 PM

Your score is

0%



How to Solve for x in Parallel Lines and Transversals

When two parallel lines are intersected by a transversal, various angle pairs are formed. One of the most common problems in this topic is solving for x, which refers to finding the value of an unknown angle represented by x. Here are the steps to solve for x in parallel lines and transversals:

  1. Identify the angle pairs: Look for the angle pairs formed by the parallel lines and the transversal. The most common angle pairs are corresponding angles, alternate interior angles, alternate exterior angles, and consecutive interior angles.
  2. Write an equation: Once you have identified the angle pairs, write an equation that represents the relationship between the angles. For instance, if you are dealing with corresponding angles, you can write an equation like this: 2x + 10 = 150.
  3. Solve for x: With the equation in place, you can now solve for x by isolating it on one side of the equation. In the example above, you can solve for x by subtracting 10 from both sides and then dividing by 2. You will get x = 70.
  4. Check your answer: After solving for x, it is essential to check your answer by substituting the value of x back into the equation. If the equation holds true, then your answer is correct.

It is important to note that there are different methods for solving parallel lines and transversals problems. Some problems may require the use of multiple equations or the application of the angle sum property. Nevertheless, the steps outlined above are the basic steps for solving for x in this topic.

Overall, solving for x in parallel lines and transversals requires an understanding of the angle pairs formed by the parallel lines and the transversal. With practice and patience, anyone can master this topic and solve even the most challenging problems.



Parallel Lines and Transversals FAQ

What are the angles formed when a transversal intersects two parallel lines?

When a transversal intersects two parallel lines, eight angles are formed. These angles can be classified into four pairs of corresponding angles, four pairs of alternate interior angles, four pairs of alternate exterior angles, and two pairs of same-side interior angles.

How do you find the value of an angle formed by parallel lines and a transversal?

To find the value of an angle formed by parallel lines and a transversal, you need to use the properties of corresponding angles, alternate interior angles, alternate exterior angles, or same-side interior angles. By setting up an equation using these angle relationships, you can solve for the missing angle measure.

What is the relationship between corresponding angles in parallel lines cut by a transversal?

The relationship between corresponding angles in parallel lines cut by a transversal is that they are congruent. This means that the measure of one corresponding angle is equal to the measure of its corresponding angle on the other parallel line.

What is the sum of the interior angles of a triangle formed by parallel lines and a transversal?

The sum of the interior angles of a triangle formed by parallel lines and a transversal is always 180 degrees. This is because the three angles of the triangle are supplementary and add up to 180 degrees.

What is the difference between alternate interior and alternate exterior angles in parallel lines cut by a transversal?

Alternate interior angles are angles that are on opposite sides of the transversal and inside the two parallel lines. Alternate exterior angles are angles that are on opposite sides of the transversal and outside the two parallel lines. The difference between them is their position relative to the parallel lines.

How do you use parallel lines and a transversal to find missing angle measures?

To find missing angle measures using parallel lines and a transversal, you need to use the angle relationships mentioned earlier. By setting up an equation using these angle relationships, you can solve for the missing angle measure.

What is it when parallel lines are cut by a transversal?

When parallel lines are cut by a transversal, eight angles are formed. These angles can be classified into four pairs of corresponding angles, four pairs of alternate interior angles, four pairs of alternate exterior angles, and two pairs of same-side interior angles.

What are the 3 angles formed when parallel lines are cut by a transversal?

When parallel lines are cut by a transversal, three types of angles are formed: corresponding angles, alternate interior angles, and alternate exterior angles. Each type of angle is formed by two intersecting lines and a transversal.



Parallel Lines cut by a Transversal Worksheet: Video Explanation

Watch our free video on how to solve Angles in Parallel Lines. This video shows how to solve problems that are on our free Parallel Lines and Transversals worksheet that you can get by submitting your email above.

Watch the free Parallel Lines and Transversals video on YouTube here: Parallel Lines cut by a Transversal

Video Transcript:
This video is about parallel lines and transversals. We’re going to go through some problems that you can find on our two parallel lines cut by a transversal worksheet on our website.

Let’s jump down to number one about two parallel lines are crossed by a transversal. This is the first problem on the free parallel lines and transversal worksheet that you can download above. The first thing we need to go over are the parts of the parallel lines cut by transversal. These two lines here are parallel lines and parallel lines are lines that will never cross.

Think of them as railroad tracks or the outside parts of a ladder so they’ll never cross. Then the line that does cross them is called the transversal which is this part right here.  When we talk about or when I say parallel lines we’re talking about these lines here and then the line that goes across the parallel lines is the transversal.

Now when you’re solving for angles that are missing in parallel lines cut by transversal there are a few key things that you need to remember. The easiest two things to remember are vertical angles and corresponding angles. Now vertical angles are any angles that are diagonal across the parallel line and the transversal in the case of this problem 60 and X are vertical angles.

60 and X and vertical angles and all vertical angles are congruent. I automatically know that if this is 60 and because this is the diagonal across from it, it also has to be 60. If we knew this angle here let’s just call it question mark then the angle across from it here would also be question mark it would be exactly the same moving on the find Y uses.

The second most important thing to remember when doing parallel lines and transversals worksheet and that’s called corresponding angles. Now a corresponding angle is located in the same position at each of the intersections of the transversal. If you’re looking you notice that the transversal creates four angle each time across as a parallel line. We’ll do one two three four and it also occurs down here one two three four now each of these angles corresponds with the other angle of the same number.

Angle one here will be equal to angle 1, angle two will be equal to angle 2, 3 & 3, 4 & 4. Now the case of this X here this X is located at angle 3 which means that angle 3 down here will also be identical or congruent to that whatever angle is here. Now in the case of X, X is 60 and because it corresponds to Y that means that Y also has to be 60 degrees. Try these practice problems and other by downloading the free parallel lines cut by transversal worksheet above.
